Description

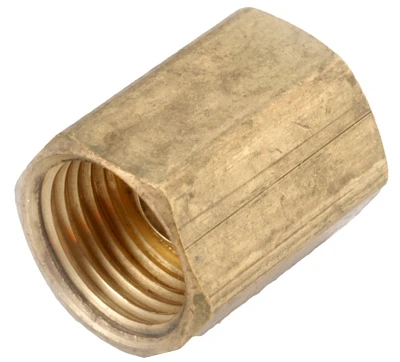

Anderson Metals 3/16″ Brass Inverted Flare Union. It connects two pipes with inverted flare fittings. Made from durable brass, this union withstands a maximum working temperature of 73 degrees Fahrenheit and a pressure rating of 1900. Bagged.
Two Piece Construction – Nut And Body
Use With Copper, Brass, Aluminum, Or Steel Tubing
Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
Seats And Threads Are Recessed, Protecting Them
Shorter Overall Length, for Limited Space Applications
Shorter Nut Allows Tubing To Be Bent Closer To Fitting
Fair Vibration Resistance
Resists Mechanical Pullout
Easy To Disassemble, And Can Be Reassembed Many Times, With No Effect On The Seal
Primary Uses: Liquids, Gases And Hydraulic Brake Systems
To Assemble:
1. Cut Smooth, Square End On Tubing
2. Slide Nut On Tube – Threads Facing End
3. Flare End Of Tube
4. Thread Nut Onto Body Until Snug, Then 1/6th Turn
WARNING: This product can expose you to lead, a chemical known to the State of California to cause cancer and reproductive harm.
